Socket	DN D L l 21 28 67 30 27 33 77 35 34 42 87 40 42 51 95 44 48 57 117 55 60 70 133 63
Reducer	DN l1 l2 L 27 - 21 19.5 16.5 40.5 24 - 21 23 16.5 48 34 - 27 23 19.5 48 42 - 21 27 16.5 56 42 - 27 27 19.5 56 42 - 34 27 23 56 48 - 21 30 16.5 62 48 - 27 30 19.5 62 48 - 34 30 23 62 48 - 42 30 27 62 60 - 27 36 19.5 74 60 - 34 36 23 74 60 - 42 36 27 74 60 - 48 36 30 74 75- 34 44 23 91 75 - 42 44 27 91 75 - 48 44 30 91 75 - 60 44 36 91 90- 34 51 23 105 90 - 42 51 27 105 90 - 48 51 30 105 90 - 60 51 36 105 90 - 75 51 44 105 110 - 42 61 27 125 110 - 48 61 30 125 110 - 60 61 36 125 110 - 75 61 44 125 110 - 90 61 51 125 125 - 90 68.5 21 140 140 - 90 76 51 155 140 110 76 61 155 160 - 90 86 51 175 160 - 110 86 61 175 200 - 110 106 61 215 200 - 160 106 86 215 250 - 200 131 106 265 280 - 250 156 131 295
male Threaded adaptor	DN Thread D L l1 l2 h 21 1/2" 25.5 38 19.5 15 6 27 3/4" 31.5 43 22.5 17 8 27 1" 31.5 46 22.5 19 8 34 1" 39 49 26 19 8 34 1. 1/2" 39 53 26 22 8 42 1. 1/4" 47.5 56 30 22 10 48 1. 1/2" 55 60 33 22 10 60 2 " 68.5 72 39 26 12 75 2. 1/2" 86.5 85 47 30 15 90 3 " 102 97 54 34 16
Female threaded adaptor	DN Thread D L l1 l2 h 21 1/2" 25.5 36.5 19.5 17 6 27 3/4" 31.5 41.5 22.5 19 8 34 1" 39 47 26 21 8 42 1. 1/4" 47.5 54 30 24 10 48 1. 1/2 " 55 57 33 24 10 60 2" 68.5 67 39 28 12 75 2. 1/2" 86.5 79 47 32 15
Female brass threaded adaptor	DN Thread D l L S 21 1/2" 28 30 52 32 27 3/4" 33 35 59 39 34 1" 42 40 68 46 42 1 .¼" 51 44 72 55 48 1. ½" 57 55 80 60 60 2" 70 63 99 75
Elbow	DN D Z L 21 25.5 11.5 16.5 27 31.5 15 19.5 34 39 19 23 42 57.5 23 27 48 55 26 30 60 69 32 36 75 87 40 44 90 103 48 51 110 126 58 61 125 140 160 180 200 250 315
Elbow 45 degrees	DN D Z L 21 25.5 5.5 16.5 27 31.5 7 19.5 34 39 9 23 42 57.5 10 27 48 55 12 30 60 69 15 36 75 87 18 44 90 103 21 51 110 126 25 61 160 180 200 250 315
Female threaded elbow	DN Thread D D1 D2 L L1 H H1 21 x 1/2" 1/2" 26 28 32 19 17 30.5 30 27 x 3/4" 3/4" 32 34 39 21 19 36 34.5 34 x 1" 1" 39 41 46 23 21 48 46
Female brass threaded elbow	DN Thread D l H L 21 1/2" 28 30 32 43 27 3/4" 33 35 36 51 34 1" 40 40 40 59
male threaded adaptor	DN Thread d1 D D1 D2 L L1 H H1 21 x 1/2" 1/2" 14 26 26 32 19 17 30 30 27 x 3/4" 3/4" 19 32 32 39 21 19 36 34.5
Tee	DN D Z L 21 25.5 11.5 16.5 27 31.5 15 19.5 34 39 19 23 42 57.5 23 27 48 55 26 30 60 67 32 36 75 84 40 44 90 98.5 48 51 110 119 58 61 140 137 66.5 68.5 160 155 72 76 180 174 81 86 200 222 102 106 250 315
Reducing tee	DN L1 L2 Z1 Z2 PN 27 - 21 - 27 19.5 16.5 13.6 16.5 10 34 - 21 - 34 23 16.5 14 20.5 10 34 - 27 - 34 23 19.5 17 20.5 10 42 - 21 - 42 27 16.5 14 24.5 10 42 - 27 - 42 27 19.5 17 24.5 10 42 - 34 - 42 27 23 21 25 10 48 - 21 - 48 30 16.5 14 27.5 10 48 - 27 - 48 30 19.5 17 27.5 10 48 - 34 - 48 30 23 21 28 10 48 - 42 - 48 30 27 25 28 10 60 - 21 - 60 36 16.5 14 32.5 8 60 - 27 - 60 36 19.5 17 32.5 8 60 - 34 - 60 36 23 21 33 8 60 - 42 - 60 36 27 25 33 8 60 - 48 - 60 36 30 28 33 8 75 - 21 - 75 44 16.5 14 40.5 7 75 - 27 - 75 44 19.5 17 40.5 7 75 - 34 - 75 44 23 21 40.5 7 75 - 42 - 75 44 27 25 40.5 7 75 - 48 - 75 44 30 28 40.5 7 75 - 60 - 75 44 36 33 40.5 7 90 - 21- 90 51 16.5 15 47.5 7 90 - 27 - 90 51 19.5 18 47.5 7 90 - 34 - 90 51 23 22 48 7 90 - 42 - 90 51 27 26 48 7 90 - 48 - 90 51 30 29 48 7 90 - 60 - 90 51 36 34 48 10 90 - 75 - 90 51 44 42 48 7 110 - 34 -110 61 23 22 58 6 110 - 42 - 110 61 27 26 58 6 110 - 48 -110 61 30 29 58 10 110 - 60 - 110 61 36 34 58 6 110 - 75 - 110 61 44 42 58 6 110 - 90 - 110 61 51 42 59 6
Female brass threaded tee	DN Thread D l H H1 21 1/2" 28 30 43 30 27 3/4" 33 35 50 35 34 1" 42 40 58 42
Y Tee	DN D Z1 Z2 Z3 l 34 39 35 40 43 23 42 47.5 43 50 54 27 48 55 48 58 62 30 60 67 62 72 78 36 75 84 72 92 98 44 90 98.5 83 106 115 51 110 119 100 134 144 61 125 133.5 112 152 160 68.5 140 149.5 124 170 176 76 160 170.4 137 202 210 86 180 200 225 250 280 315
Cross	DN L1 L2 Z 90 140 70 100 110 178 95 128
reducing bushes	DN D d L 75-34 75 34 44 75-42 75 42 44 75-48 75 48 44 75-60 75 60 44 90-42 90 42 51 90-48 90 48 51 90-60 90 60 51 90-75 90 75 51 110-48 110 48 61 110-60 110 60 61 110-75 110 75 61 110-90 110 90 61 140-90 140 90 76 160-90 160 90 86 160-110 160 110 86 200-110 200 110 106
Cap	DN D L l 21 28 33.5 29 27 32 38.5 34 34 42 44 39 42 51 48.5 44 48 57 43 30 60 72 55.5 36 63 72 55.5 37.5 75 87 69 44 90 105 75 51 110 124 94 61
Compression coupling	DN D L L1 L2 48 80 175 34 100 60 92 200 55 156 90 138 276 63 190
Flange conection	DN D Æ P L h d x n 60 72 165 125 46 18 18 x 4 75 87 185 145 54 18 18 x 4 90 103 200 160 61 22 18 x 4 110 126 220 180 71 24 18 x 8 140 162 250 210 88 26 18 x 8 160 183 285 240 100 28 18 x 8
Flange conection with rubberring	DN D P l LH h 250 370 325 192 248 32 280 395 350 208 264 32
Flange connection with rubberring2	DN D L l P 200 275 175 30 295
Nipple	Thread d l L S D 1/2" 14 15 38 26 29 3/4" 18 17 42 30 33 1" 24 19 48 38 42
Male cap	Ô L l S 1/2" 28 15 16 3/4" 30 17 16 1" 34 19 20
Socket E-E with rubberring	DN L 63 245 75 260 90 270 110 295 125 320 140 332 160 350 180 374 200 390 225 405 250 433 280 465 315 505 355 557 400 585 450 635 500 715
Socket U-E with rubberring	DN L l 63 243 104.2 75 265 111.2 90 282 116.1 110 308 122.9 125 325 128.1 140 345 132.5 160 369 140.2 180 392 146.1 200 414 152.0 225 446 161.1 250 478 168.5 280 517 181.4 315 559 192.2 355 590 206.4 400 620 220.0 450 658 235.0 500 714 255.0
Rubberring	DN L H 63 84 20 75 98 22 90 113 23 110 139 25 125 155 25.3 140 174 25.5 160 196 29 180 215 31 200 237 33 225 267 32.5 250 291 34 280 326 36 315 358 40 355 405 43 400 454 46 450 518 52 500 572 58
Elbow 45 degrees with rubbering	DN l Z PN 63 104.2 15 10 75 111.2 18 10 90 116.1 21 10 110 122.9 25 10 125 128.1 29 08 140 132.5 32 08 160 140.2 36 08 180 146.1 39 08 200 152.0 45 08
Elbow 90 degrees with rubbering	DN l Z PN 63 104.2 97.8 10 75 111.2 115.8 10 90 116.1 135.9 10 110 122.9 166.1 10 125 128.1 186.9 08 140 132.5 207.5 08 160 140.2 226.8 08 180 146.1 260.0 08 200 152.0 364.0 08
Tee with rubbering	DN l Z L PN 63 104.2 97.8 404 10 75 111.2 115.8 454 10 90 116.1 135.9 504 10 110 122.9 166.1 578 10 125 128.1 186.9 630 08 140 132.5 207.5 680 08 160 140.2 226.8 734 08 180 146.1 260.0 824 08 200 152.0 364.0 1032 08

Socket	DN L Z 18 67 7 20 77 7 25 89 7 35 99 7 40 117 7 50 133 7 65 145 19 80 155 27 100 200 32 150 300 36

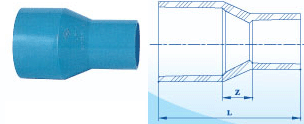

Blue reducing socket	DN L Z 20 x 18 71 6 25 x 18 84 13 25 x 20 84 8 35 x 20 93 12 35 x 25 93 6 40 x 18 114 29 40 x 20 114 24 40 x 25 114 18 40 x 32 114 13 55 x 18 136 43 55 x 20 136 38 55 x 25 136 32 55 x 32 136 27 55 x 40 136 18 65 x 20 149 51 65 x 25 149 45 65 x 32 149 40 65 x 40 149 31 65 x 55 149 23 80 x 35 165 55 80 x 40 165 46 80 x 55 165 38 80 x 65 165 38 100 x 40 190 51 100 x 55 190 43 100 x 65 190 43 100 x 80 190 42 125 x 55 230 63 125 x 65 230 63 125 x 80 230 62 125 x 100 230 42 150 x 80 295 99 150 x 100 295 79 150 x 125 295 59
Male adaptor	DN L d W B 18 x 1/2" 54 13 6 28 20 x 3/4" 64 18 8 33 25 x 1" 71 23 8 41 35 x 11/4" 80 31 10 49 40 x 11/2" 92 37 10 57 50 x 2" 106 48 12 70 65 x 2/1/2" 117 63 14 88 80 x 3" 127 75 16 103 100 x 4" 157 98 18 131
Female adaptor	DN L D2 D1 W 18 x 1/2" 52 34 30 4 20 x 3/4" 59 42 37 4 25 x 1" 68 52 46 5 35 x 11/4" 72 53 53 10 40 x 11/2" 84 58 58 10 50 x 2" 99 73 73 12 65 x 2/1/2" 110 90 90 14 80 x 3" 119 105 105 16 100 x 4" 141 133 133 18
Female brass threaded adaptor	DN L D2 D1 W 18 x 1/2" 52 34 30 4 20 x 3/4" 59 42 37 4 25 x 1" 68 52 46 5 35 x 11/4" 72 53 53 10 40 x 11/2" 84 58 58 10 50 x 2" 99 73 73 12 65 x 2/1/2" 110 90 90 14 80 x 3" 119 105 105 16 100 x 4" 141 133 133 18
Elbow	DN H Z 18 43 13 20 50 15 25 60 19 35 70 24 40 82 27 50 96 33 65 110 47 80 120 56 100 153 69 125 187 83 150 230 98 200 240 115
Elbow 45	DN H Z 18 37 7 20 44 9 25 52 11 35 58 12 40 69 14 50 80 17 65 91 28 80 97 33 100 122 38
Reduced elbow	DN H Z H1 Z1 20 x 18 48 13 45 15 25 x 18 60 19 43 13 25 x 20 57 16 54 19
Female Elbow	DN H Z H1 D2 D1 w 18 X 1/2" 43 13 29 34 30 4 20 X 3/4" 51 16 36 42 37 4 25 X 1" 61 20 42 52 46 5
Female brass threaded elbow	DN H Z H1 D2 D1 W 43 13 29 34 30 4 51 16 36 42 37 4 61 20 42 52 46 5
Male elbow	DN H Z H1 Z1 D W B 18 x 1/2" 43 13 43 24.5 13 6 28 20 x 3/4" 51 15 50 29 18 8 33 25 x 1" 61 19 60 37 23 8 41
Tee	DN H Z 18 43 13 20 50 15 25 60 19 35 70 24 40 82 27 55 96 33 65 110 47 80 120 56 100 152 68 125 190 86 200 230 98

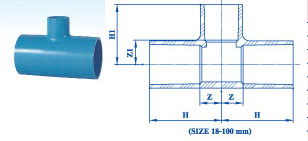

Reduced Tee	DN H Z H1 Z1 20 x 18 48 13 45 15 25 x 18 54 13 48 18 25 x 20 56 15 53 18 40 x 18 68 13 57 21 40 x 20 70 15 62 21 40 x 25 73 18 68 21 55 x 18 76 13 63 27 55 x 20 78 15 68 27 55 x 25 81 18 74 27 55 x 35 84 21 79 27 55 x 40 90 27 88 33 65 x 20 84 21 76 33 65 x 25 87 24 82 33 65 x 40 96 33 96 33 65 x 55 102 39 104 33 80 x 18 85 21 77 41 80 x 20 87 23 82 41 80 x 25 90 26 88 41 80x 40 100 36 102 41 80 x 55 105 41 110 41 80 x 65 113 49 116 41 100 x 20 107 56 94 47 100 x 25 110 73 100 47 100 x 40 119 43 104 47 100 x 55 125 56 122 47 100 x 65 133 73 108 47 100 x 80 140 49 132 47
Female threaded Tee	DN H Z H1 Z1 D2 D1 W 18 x 1/2" 43 13 29 12 34 30 4 20 x 3/4" 50 15 36 17 42 37 4 25 x 1" 60 19 42 21 52 46 5
Female brass threaded Tee	DN H Z H1 Z1 D2 D1 W 18 x 1/2" 43 13 29 12 34 30 4 20 x 3/4" 50 15 36 17 42 37 4 25 x 1" 60 19 42 21 52 46 5
End cap	DN L t 18 33 2.88 20 38 2.9 25 44 3.4 35 50 3.6 40 59.5 4.06 55 68 5 65 90 6.3 80 105 7.5 100 138 9.5 150 205 12.5 200 285 16.2
Threaded Cap	DN B A L l2 18 34 30 23 14 20 41 37 25 16 25 51 46 30 18 55 108 73 39 26
Union	DN A L D d H B 18 90 68 31 20 38 20 105 78 35 21 43 25 120 88 44 21 52 40 135 106 60 26 70 55 150 116 73 26 84
Plug	DN d1 l L W S B 18 13 15 27 3 13 22 20 18 17 30 3 17 28 25 23 19 36 4 19 34 40 37 22 36 4 32 48 55 48 26 43 5 42 60
TS Flange	DN L d Dimension of flange d1 d2 d3 No of holes b 55 70 51 155 120 19 4 16 80 75 77 200 160 19 4 21 100 105 100 220 180 19 8 22 150 144 146 285 260 23 8 23
Nipple	DN d D W L l B 18 13 10 40 15 26 20 18 11 49 19 32 25 23 12 50 19 41
